Hydraulic Jack SunRun RSR merupakan dongkrak atau cylinder double action yang didesain
untuk tarik dan dorong. Kegunaan dari Silinder Hidrolik RSR-5013 50 Ton SUNRUN untuk menggerakan mesin dengan cara di dorong. Keunggulan Hydraulic Jack cylinder double action
ini memiliki katup pengaman yang berfungsi ketika tekanan melebihi 700bar maka
menyemburkan oli dari katup pengaman yang bertujuan untuk melindungi silinder
Hydraulic Jack.
Spesifikasi :
Model : RSR-5013
Cylinder Capacity : 50ton (498kN)
Stroke : 334mm
Max. Cylinder Capacity (Push) : 498kN
Max. Cylinder Capacity (Pull) : 150kN
Cylinder Eff. Area (Push) : 71.2cm²
Cylinder Eff. Area (Pull) : 21.5cm²
Oil Capacity (Push) : 2378cm³
Oil Capacity (Pull) : 718cm³
Coll. Ht. : 509mm
Ext. Ht. 843mm
Out. Diam. : 127mm
Cyl Bore Diam : 95.2mm
Plngr. Diam : 79.5mm
Base to Adv Port : 28mm
Top to Ret. Port : 76mm
Saddle Diam : 71mm
Saddle Protr. fr. Plngr. : 2mm
Plunger Internal Thread : 1"-12in
Plunger Thread Length : 25mm
Collar Thread : 5"-12in
Collar Thread Length : 50mm
Bolt Circle Diam. : -
Thread : -
Thread Depth : -

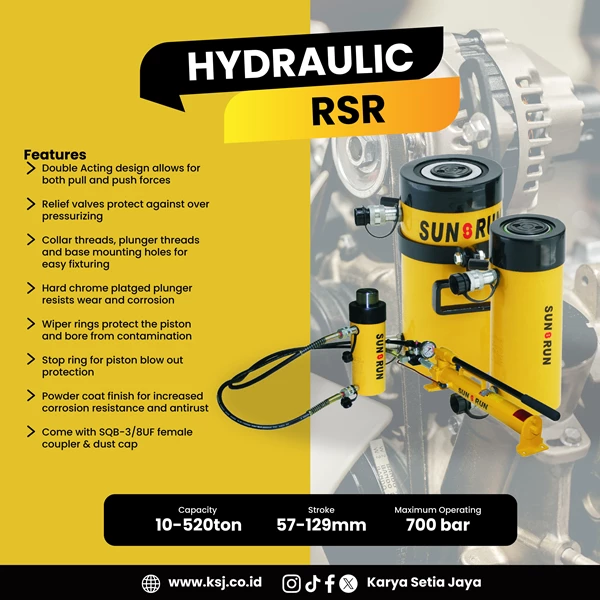

Double-Acting Cylinders
- Double-acting design allows for both pull and push forces.
- Relief valves protect against over pressurizing.
- Collar threads, plunger threads and base mounting holes for easy fixturing. (See chart)
- Hard chrome plated plungger resists wear and corrosion.
- Stop ring for piston blow-out protection.
- Powder coat finish for increased corrosion resistance and antirust.
- Come with SQB-3/8UF female coupler & dust cap.
- RSR series cylinders are perfect for bridge lifting, building reconstruction, shipyard, utility and minnning equipment maintenance.
- As need power and prociso positioning of heavy loads, RSR series are the best solution.
